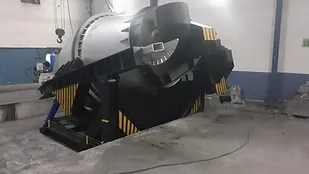

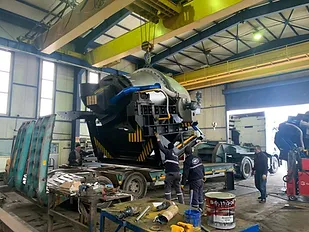

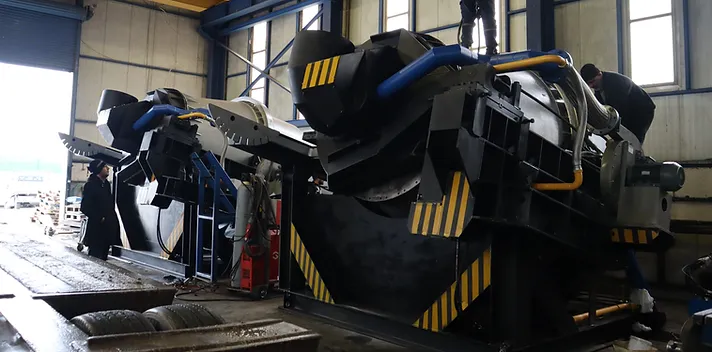

ROTARY MELTING FURNACE

TECHNICAL DETAILS

Electricity : 380 V, 3 phase 220 V, 1 phase 24 V, DC
Fuel : Natural gas, 300 mbar
Furnace Type : Rotatable and Tiltable
Metal Temperature : 700-760 oC max
Liquid Metal Capacity : 15 tons aluminum
Tilt to front degree : 150
Tilt to behind degree : 270
Inner diameter of furnace : Ø2000
Inner diameter of furnace door : Ø1200
Melting Capacity : 3750kg (15 ton) - 2000 kg/hour
Melting Time : 4 hour
Cycle time : 5 hour
Number of casting per day (24h) : 4 times
Furnace RPM : 1-4 revulation /min. ( with AC driver.)
Tilting System : Hydraulic
Rotating System : Planet reducer Turkish brand ( AC driver)
Buner : 2.600.000 FIREOX Proportional Control
Brand of electronic equipments: ABB
Gas Consumption : 100m3/ tons
